    Implants

    PFZ implant crown, FMZir implant crown and customised Zr/Ti abutment available.

     Includes:

    •  Screw- or cement-retained crown (PFM**)
    •  Custom Milled Titanium Abutment
    •  Standard Titanium Screw or NEW Titanium Nitride TiN Coated Screw
    •  Implant analog and soft tissue model
    •  Major commercial systems supported

    **Semi or high precious alloy extra
    *Terms and conditions apply. Click here for more details.

    Contact us for pricing.



    Abutment options for implants

    Material options for implants



    Screw-retained Restorative Options

    The abutment and crown are an integrated unit. The options are:

    • Cast abutments – veneered with porcelain or composite
    • Titanium base – CAD/CAM (adhesive bases for monolithic or laminated zirconium-oxide, lithium disilicate or ceramic-composite hybrids)
    • Milled abutments – Metal (titanium or CoCr) or Zirconia



    RESTORATION RETAINED INDICATIONS EXPLANATORY NOTES
    PFM ✓ Universal Direct to fixture with High Noble, Noble and Cobalt Chromium or Titanium superstructure with porcelain veneering
    IPS e.max® ✓ Limited Titanium interface, monolithic combination abutment and crown
    Reduced strength/care in case selection
    (optimal translucent effect)
    PFZ ✓ Aesthetics/Strength Titanium interface, zirconia abutment with veneering ceramic
    (optimal aesthetics)
    FMZ ✓ Economical/Strength Titanium interface, monolithic combination abutment and crown
    (optimal strength)

    Cement-retained Restorative Options

    RESTORATION CAST GOLD ABUTMENT TITANIUM OR Co/Cr ABUTMENT ZIRCONIA ABUTMENT* INDICATIONS
    PFM ✓ ✓ Limited Universal
    IPS e.max® Limited Limited ✓ High Aesthetics
    PFZ ✓ ✓ ✓
    (Aesthetics +)    		 Aesthetics
    + Strength
    FMZ Limited ✓ ✓ Strength
    + Economical

     *Titanium interface in some cases

    1. Titanium interface is strong. When it is torqued down, it is unlikely to split zirconia abutments.
    2. Some systems have a pure zirconia abutment direct to fixture depending on:

    • size of implant (narrow implants are unsuitable)
    • compatibility with scanners

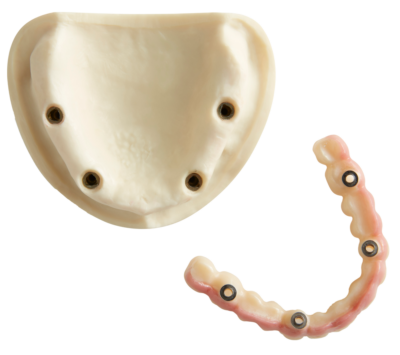

    Hybrid Restorations

    • Screw-retained hybrids offer a very cost-effective fixed-prosthesis option
    • Comprised of a cast of milled metal substructure layered with pink acrylic to retain acrylic denture teeth
    • Some degree of lost tissue replacement is possible
    • Implant positioning and angles must be favourable or angled abutments can be used to “correct” the angle so that screw access holes are in lingual or palatal or occlusal position
    • These restorations are readily retrievable and also easily repaired
    • To facilitate good patient care and plaque control, careful design is important
